The new age powder coating gun, is based on concept is low energy generation. It gives enriched charging while making safer for use. The unique external powderpath leads to unform powder flow. All die-casted parts of modern polymer makes thew gun light weight, well balanced and maintenance free.
External Powder Path
Easy and quick color change is the unique advantage of external powder path. As the powder flow is outside the gun barrel, maintenance become very easy providing maximum benefit of time and labour saving.
Touch Trigger
Fatigue free operation and safe, as the gun triggers only if operator is earthed
Fold Back Charteristics
• Voltage & current reduces as the gun goes nearer to the article
• Easy coating in faraday-cage prone areas
• Powder flow stops as the gun touches the article
• Safe : voltage and current become zero when gun touches article/person.
Cap at fully inserted position will give broader beam
Movement of the cap outside
Text Found on Your Image isMovement of the cap outside will give smaller beam
Stainless steel hopper, with 20kg for non-vibrating type equipment and 20kg, 3 tier for vibrating type equipment. The third tier comprises of the sieve box for easy automatic sieving. It is easy to clean & refill.
The brain behind the functioning of the equipment, comes with IP 54 grade protection which make it immune to the atmosphere in the powder coating shop. Separate pneumatic and electronic sections and ease of reach for maintenance makes PP 17 safer and user friendly. Required indications are ergonomically placed for ease of reading.
Powder pump has uniform powder output due to its unique pump design. High volume powder suction with lesser consumption of air adds to the life of the ventury & reduces the stray examples of bounce back problems.

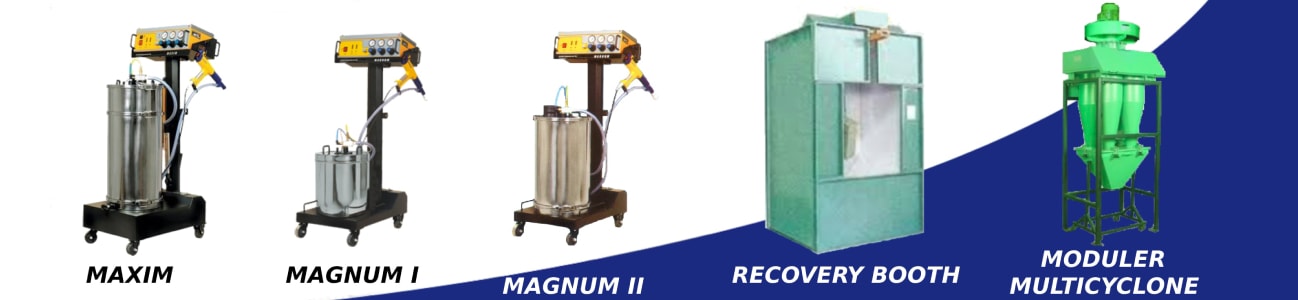

| Model Name | Gun Type | Monitor | SS Hopper | Trolley | Nozzle Type | Direct Suction | Powder Level Sensor |
|---|---|---|---|---|---|---|---|
| Magnum I | Shalaka 17 | PP17 | 12 kg. / 20ltr. | Non-Vibrating | R / A & Flat | N.A. | N.A. |
| Magnum II | Shalaka 17 | PP17 | 20 kg. / 40ltr. | Non-Vibrating | R / A & Flat | N.A. | N.A. |
| Magnum (BM) | Shalaka 17 | PP17 | N.A. | Non-Vibrating | R / A & Flat | N.A. | N.A. |
| Maxim | Shalaka 17 | PP 17 [ V ] | 20 kg. / 40ltr. | Vibrating | R / A & Flat | Yes | Yes |
Hopper
Smaller 12kg hopper for less powder consumption.
Minicon
1 kg hopper for testing & laboratory purpose.
Hose
High Performance flexible powder hose.
Nozzels
A wide range of nozzels make shalaka 17 gun suitable for practically any & every application. Just change a cap and change proper nozzel easily.
